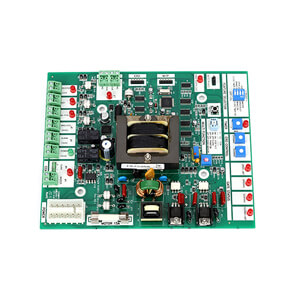

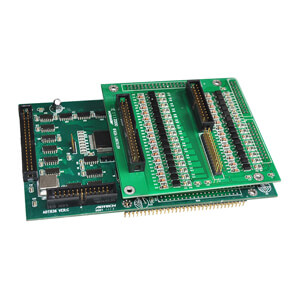

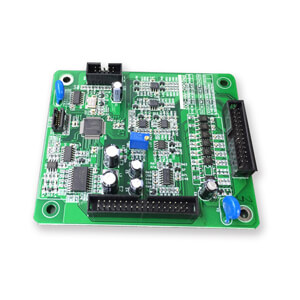

OEM Custom Copper Thickness PCB Assembly
  • Base Material:

    FR-4, Hi-TG FR4, CEM-1, CEM-3

  • Board thickness:

    0.2mm-6mm

  • Min. Hole Size:

    0.1mm

  • Surface Finishing:

    HAL, HASL Lead Free

  • Copper Thickness:

    0.3oz-6oz

  • Min. Line Width:

    0.15mm

We are offering a high-quality range of OEM Copper Thickness PCB Assembly to our most reliable clients. These products are widely used in various applications. The offered range of products is made from optimum quality material and manufactured under the supervision of an expert team of professionals. In order to ensure quality, the entire range is rigorously tested against various quality parameters by our quality controllers. Keeping in mind the diverse requirements of our clients, we provide the entire range in various sizes and specifications and at affordable prices.

Specification:

Base Material FR-4, Hi-TG FR4, CEM-1, CEM-3
Copper Thickness 0.3oz-6oz
Board thickness 0.2mm-6mm
Min. Hole Size 0.1mm
Min. Line Width 0.15mm
Min. Line Spacing 0.15mm
Surface Finishing HAL, HASL Lead Free

Application:

PCB is mainly used in automotive electronics, industrial control power supply, IT communication, medical equipment, etc., and is committed to becoming the best quality value-added service solution provider for small and medium batches and allegro production.

Deliverability:

Layers Deliverability Deliverability
2L <1m² 5 days <3m² 5 days
4L <1m² 6 days <3m² 7 days
6L <1m² 8 days <3m² 9 days
8L <1m² 8 days <3m² 9 days

Notes:
The standard plate is ordinary FR-4 Tg130 without a specified brand.
Minimum line width/space: 4MIL.
Inner/outer finish copper thickness: 35/35um.
Minimum aperture: 0.30MM.
Surface treatment process: lead spray, lead-free spray, OSP.

Production Capacity: 10000-15000m²/month
Packaging Details: vacuum packing and put in carton
Delivery Time: 10-15 working days

1. What is your minimum order quantity?
No MOQ.

2. How about your factory production capacity?
Our supply capacity is about 15000 square meters per month. We have 1,1000 square meters of factory space for R&D, marketing, logistics and procurement.

3. What service do you have?
We can provide one-stop services from PCB manufacturing to PCB assembly, testing, housing and other value-added services.

4. What file formats do you accept for PCB?
Gerber and CAM Auto CAD DXF, DWG formats.

5. Are my design files secure when I send them to you?
Your files are held in complete safety and security.

6. What are the payment terms?
Paypal, Western Union and T/T Bank is acceptable.

7. Are you a manufacturer?
Yes, we are a manufacturer, our factory in Shenzhen, China

8. How do you ship the goods and how long does it take?
We usually ship it by DHL, UPS FedEx, TNT. It usually takes 4-5 working days. By air or by sea are also acceptable.

9. How do you control the quality?
We have full line inspection, from IQC, OQC, FQC and 100% aging testing for electrical products before packaging.

10. Can we visit your company?
That’s Great! Wecome warmly to our company! Contact us
