MCPCB OF LED LIGHTING

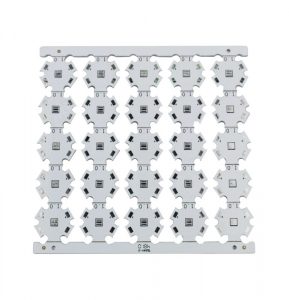

Aluminum base PCB
1 Layer
Aluminum base PCB,Al 1.5mm,5052H34,dielectric 0.1mm,copper thickness 2 oz.
Solder mask white,silkscreen black.
Used in Led Lighting .

Metal Core PCB Capability:

Circuit Trace Width/Space : 4/4mil .
The Minimum Hole Diameter : 0.5mm (NPTH), 0.3mm(PTH) .
The Minimum legend Height/Width: 0.8mm/0.15mm .
Surface Finishing : HASL-LF, ENIG, Immersion Silver,Plated Silver,OSP,ENEPIG .
Maximum Panel Dimension : 1200mm x 600mm .
Final Board Thickness : 0.5mm ~ 5.0mm .
Final Copper Thickness:HOZ 1OZ 2OZ 3OZ 4OZ 6OZ 10OZ .
Dielectric Thickness : 50um 75um 100um 125um 150um .
Metal Type : AL(1100.3003.5052.6061),Mirror Finish Al, Cu, Fe,Stainless Steel .
Metal Substrate Thickness : 0.5mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 3.0mm 3.2mm.
Solder mask colour : White, Black, Green,Red, Yellow,Blue,Grey.
Shaping : Tooling Punching,CNC Routing,V-CUT.
Special Hole : Blind&buried hole,Depth milling,T-slot,Countersink hole.
