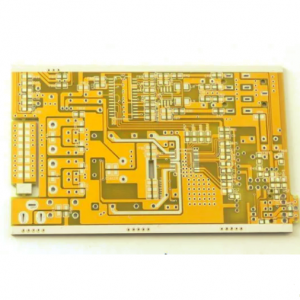

1.6mm Heavy Copper PCB Gold Plated Round PCB
  • Base Material:FR4/Halogen free/Rogers
  • Board thickness:0.15mm-10mm
  • Min. Hole Size:0.1mm
  • Surface Finishing:ENIG/OSP/HASL
  • Impedance Control:±10%
  • Max Surface Cu Thickness:12 oz

We produce 1-10 layers flexible PCBs,and 2-12 layers flex-rigid PCBs.

For flexible PCBs, we’re professional at multi-layer FPC, FPC cable, keyboard FPC, impedance control flex pcb, 0.05mm extra thinner FPC, LED FPC, transparent flexible pcb,etc.
Item
FPC Capability
Product types
1-2 layer aluminum, copper base pcb boards
Product types
aluminum, copper
Maximum finished board size
250*5000mm
Board thickness
0.4mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 4.0mm, 6.0mm
Min. trace width & spacing
0.045/0.045MM
Tolerance for finished product
±0.03mm
Copper thickness
12UM, 18UM, 36UM, 70UM
PTH Hole Dia.Tolerance(plated-through-hole)
±0.05mm
Acceptance criteria
Factory production standard, GB;IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc
Item
Specification
IMS Metal PCB
Copper
copper PCB

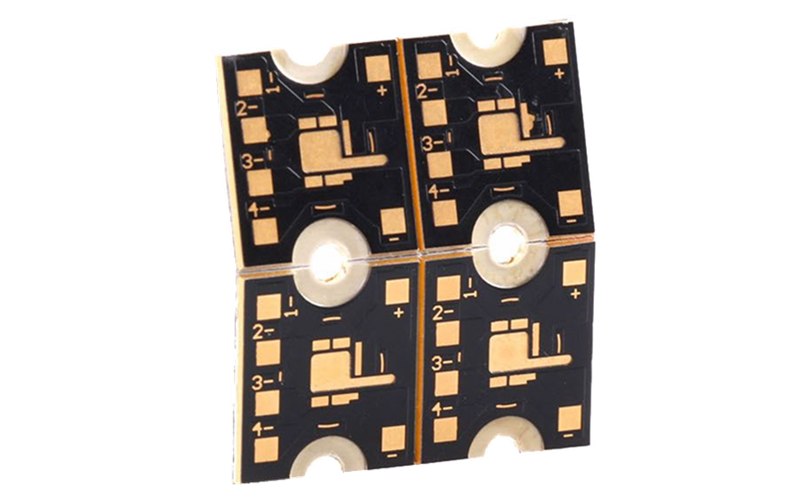

1-2 layer copper pcb board, high heat conducting thermoelectric separation copper based pcb,
Copper clad PCB
Heavy copper clad PCB boards
